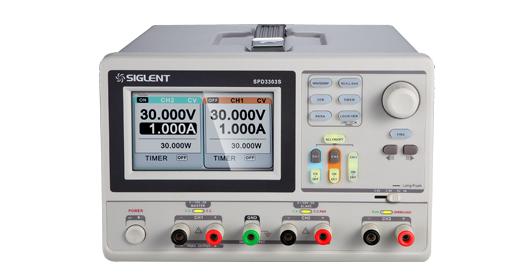

I finally pulled the trigger and bought a bench power supply. Up until this point I have just been using the ATX breakout board. I’ve been looking around for a while, trying to way up price vs features and finally settled on the Siglent SPD3303D.

New Bench Supply 1

The supply has 2 fully adjustable channels that can work in independent, series and parallel modes. The 3rd channel switches between 2.5v/3.3v/5v at 3A. The display only covers the first 2 channels, the 3rd channel just has the LED displaying CV/CC mode. The 2 adjustable channels also have a timer function which can be programmed either on the supply itself or via USB using the included software (just like other features).

I settled on this guy because it ticked all my boxes - and physically was the right size for my shelf as well.

There is quite a lengthy thread on this particular supply here on the EEVBlog forum. This thread mentions two issues found with the supply - namely: Spikes / overshoots on CH3 during power on / power off of the entire supply Spikes when the output of CH3 when a load is removed If you read the entire thread on the EEVBlog forum you’ll notice that both Siglent and the Australian supplier mention that there was a revision of the hardware late last year (2013) which fixed these issues. As posted by Siglent Support the hardware version number has not changed. The supplier confirmed that the version I had ordered was this latest revision.

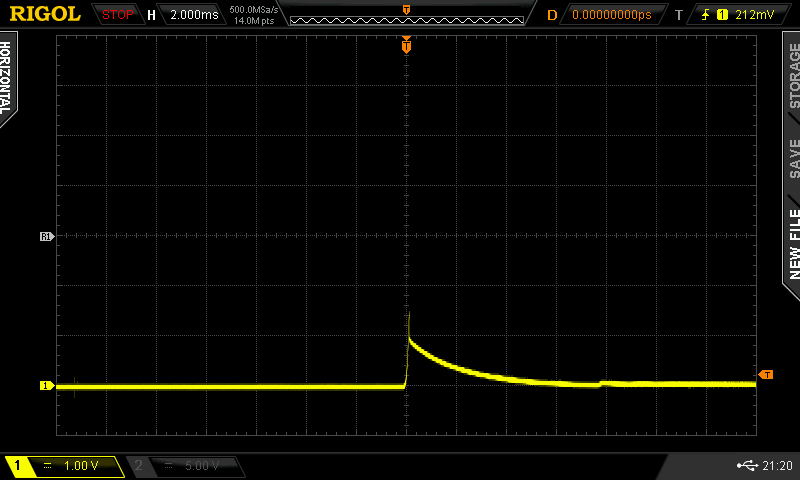

So the first thing I did was some testing when the supply showed up. The results I got show that there is some level of fix that has been applied to the 3rd channel. Cold start of the whole unit with a load resistor on the 3rd channel:

New Bench Supply 2

There is still a spike there. Removing the load from the 3rd channel:

New Bench Supply 3

Again still a small spike.

Both of these results are less that the original issues picked up with the hardware revision from last year. And they only occur on the 3rd channel - which I personally don’t have a huge issue with. The first two channels don’t have any of these issues.

I also wanted to note that the service I received from TRIO Test & Measurement was awesome. If you are in Australia check them out!
